Add an Azure App Template
The App template defines the settings and configurations of the VM to be deployed in the sandbox as well as the application(s) to be installed on that VM.
- By default, all public cloud Apps of the same type in the same sandbox are deployed within the same subnet and therefore are connected to each other and isolated from other sandboxes. However, using the Subnet service, blueprint designers can set up multiple subnet networks in the sandbox, instead of having one default subnet for all the Apps of the same cloud provider. For details, see Subnet Connectivity.
- Public cloud App deployment requires the management network and subnet(s) to be prepared in advance as part of the sandbox Setup process. CloudShell's out-of-the-box Setup process does this. However, the blueprint must include at least one public cloud App to initiate the Setup script's connectivity preparation process for deployment in that public cloud.
To add a new Azure App template:
-
Click + Add.
The Create New App wizard is displayed.
- From the Select Deployment Type pane, select the Azure deployment type.
-
Enter a Name for the App template.
Note: The App template's name has a limit of 100 characters and can only contain alpha-numeric characters, spaces, and the following characters: | . - _ ] [
-
Click Create.
The App template is created and the App wizard's General page is displayed.
-
In the General page, define the App template's display settings and category. More...
Field Required Description Name Required App name that is displayed in the catalog. Description Optional Description of the App. Icon Optional Add an image to the catalog definition. The recommended size for the image is 190x120 pixels (image size is limited to 400x400 pixels or 200 KB). Categories Optional Service categories are a method to classify Apps. The Apps are displayed in the Add App / Service side pane in the blueprint and sandbox diagram, arranged in categories. Only users who are permitted to view the category can access the App. Apps without a category are not displayed.
By default, the Applications category is selected.
Select a category from the dropdown list. You can select additional categories. Examples of categories are: applications, networking and VLAN.
Notes:- The category must be associated with the domain in which the required cloud provider resides. For information about domain categories, see Managing domain categories.
- It is recommended to use up to a 2-level hierarchy when organizing the Add App / Service catalog (i.e. root and sub-category).
- In the Add App / Service side pane, Apps are displayed in the root category only. This includes services associated to sub-categories.
-
In the left pane, click Deployment Paths and configure the App template's deployment path. More...
A deployment path consists of (1) the selected deployment type (the method to be used to deploy the VM), (2) the VM’s settings such as storage size, CPU and image file, and (3) the CloudShell cloud provider resource that enables CloudShell to access the cloud provider and deploy the VM on it.

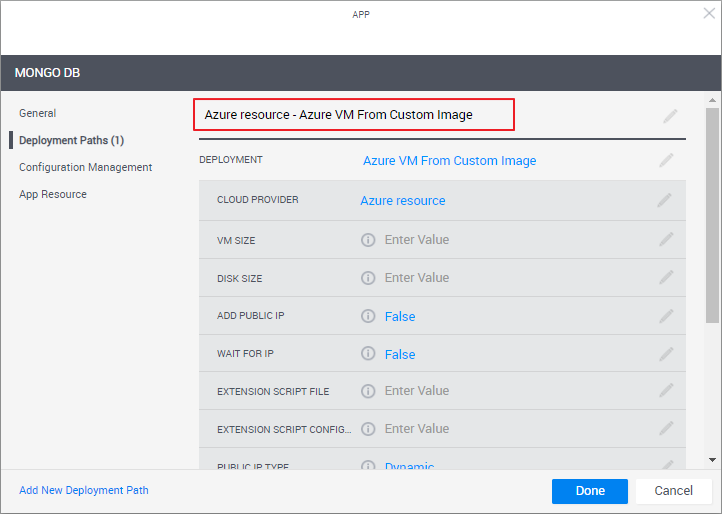

Note the deployment path's name (highlighted in the image below). The path's name is dynamic and consists of the selected Cloud Provider resource and Deployment type. You can change the name of the path by clicking the field.
-
From the Deployment drop down list, select the deployment type.
The selected deployment type's attributes are displayed.
-
Fill in the details.
-
For Azure VM From Custom Image attributes, more...
Cloud Provider Name of the Azure cloud provider resource to be used VM Size (Optional) Size of the Microsoft Azure computing resources, including CPU, memory and networking capacity of the VM. Leave it empty to use the default VM Size that was set in the cloud provider resource. For example: “Standard_A0”.
For Azure Apps that will run configuration management operations, specify a VM size of Basic_A2 or larger.
For additional information, see the Azure help page Sizes for virtual machines in Azure or use Azure CLI to get a list of your region's supported sizes.
Disk Size (Optional) VM's disk size in GB. For example, “17” or “35”.
If you leave it empty, CloudShell will determine the disk size according to the App's VM Size.
Wait for IP Determines if the App deployment process waits for the VM to get an IP. Default is False.
Add Public IP Set to True to use a public IP address to communicate with the VM from outside the virtual network.
In most cases the public IP address is associated with the VM until the VM is stopped or terminated, after which the IP is no longer available. To ensure that the IP is available to your subscription at any time, reserve it by setting the Public IPType attribute to Static.
Allow All Sandbox Traffic Determines if the App allows inbound traffic from all other Azure Apps in the sandbox. If set to False, the App's VM will be isolated. Access from specific Apps or subnets can be defined using the Inbound Ports attribute or API.
Note: By default, this attribute is True, and access is allowed to all ports from all Apps in the sandbox. By default, all ports are open for traffic within the sandbox.
Extension Script File / Configuration (Optional) Custom extension script (PowerShell, Python, batch, etc.) to execute on the deployed VM.
- Extension Script File: Raw URL of the script file
-
Extension Script Configuration: Space-separated value containing the tool to be used to execute the script, such as Python or PowerShell, the script's file name and extension, and any inputs that need to be passed to the script. For example:
python my_script.py input1
input2
Notes:- For non-PowerShell scripts, the tool to be used to execute the script must be installed on the VM.
- For Linux VMs, you must specify the tool to be used. For Windows VMs, PowerShell is used by default, unless a different tool is specified.
Note: To support the execution of extension scripts, custom images created outside of Azure Marketplace must include the ProvisionGuestAgent agent. For additional information, see Virtual machine extensions and features for Windows.
Public IP Type Set to Static to ensure that the VM always uses the same public IP. By default, public IPs are Dynamic and the address associated to them may change when the VM is powered off. Inbound Ports Semi-colon separated list of ports and protocols to open for inbound traffic. Note that by default access from the management VPC is allowed and all ports are open for traffic between Azure App VMs within the sandbox, but this can be changed using the Allow All Sandbox Traffic attribute.
In addition, all outbound traffic is allowed.
The syntax is:
port[single/range]:protocol[tcp(default)/udp]
For example: "80;443:tcp;200-220:udp".
Note: If not specified, the protocol defaults to TCP.
Tips:
- To allow QualiX in-browser connections to the VM from the sandbox, include port "22".
- To set more specific security groups, it is recommended to use the TestShell API's
SetAppsSecurityGroup
method instead. Unlike the Inbound Ports attribute, it enables you to define different port settings per subnet and allow inbound access to specific source CIDRs. For additional information, see SetAppSecurityGroups Code Example.
Resource Group Resource group in which the custom image resides. Image Name Name of the custom image. The image name is listed in the Images blade of the Azure portal.
Disk Type Type of disk to use (HDD / SSD). Default is HDD.
-
For Azure VM From Marketplace attributes, more...
Note: Every VM deployed from a Marketplace image is created with a managed disk, which is deleted when the sandbox ends.
If you want to deploy a third party application from a Marketplace image, make sure Programmatic Deployment is enabled for the image in the subscription. To enable, log in to Azure and open the Marketplace, find the image and click it, select the Want to deploy programmatically? Get started link at the bottom of the blade that appears. Then, in the Configure Programmatic Deployment blade, scroll down to the bottom, select Enable for the appropriate subscription and click Save. For additional information, see the following Azure help page: Working with Marketplace Images on Azure Resource Manager.
Cloud Provider Name of the Azure cloud provider resource to be used VM Size (Optional) Size of the Microsoft Azure VM. This parameter determines the CPU, memory and networking capacity of the VM. Leave it empty to use the default VM Size that was set in the cloud provider resource. For example: “Standard_A0”.
For Azure Apps that will run configuration management operations, specify a VM size of Basic_A2 or larger.
Disk Size (Optional) VM's disk size in GB. For example, “17” or “35”.
If you leave it empty, CloudShell will determine the disk size according to the App's VM Size.
Add Public IP Set to True to use a public IP address to communicate with the virtual machine from outside the virtual network.
In most cases the public IP address is associated with the VM until the VM is stopped or terminated, after which the IP is no longer available. To ensure that the IP is available to your subscription at any time, reserve it by setting the Public IP Type attribute to Static.
Wait for IP Determines if the App deployment process waits for the VM to get an IP. Default is False.
Extension Script File / Configuration (Optional) Custom extension script (PowerShell, Python, batch, etc.) to execute on the deployed VM.
- Extension Script File: Raw URL of the script file
-
Extension Script Configuration: Space-separated value containing the tool to be used to execute the script, such as Python or PowerShell, the script's file name and extension, and any inputs that need to be passed to the script. For example:
python my_script.py input1
input2
Notes:- For non-PowerShell scripts, the tool to be used to execute the script must be installed on the VM.
- For Linux VMs, you must specify the tool to be used. For Windows VMs, PowerShell is used by default, unless a different tool is specified.
Public IP Type Set to Static to ensure that the VM always uses the same public IP. By default, public IPs are Dynamic and the address associated to them may change when the VM is powered off. Inbound Ports Semi-colon separated list of ports and protocols to open for inbound traffic. Note that by default access from the management VPC is allowed and all ports are open for traffic between Azure App VMs within the sandbox, but this can be changed using the Allow All Sandbox Traffic attribute.
In addition, all outbound traffic is allowed.
The syntax is:
port[single/range]:protocol[tcp(default)/udp]
For example: "80;tcp:443;udp:200-220".
Note: If not specified, the protocol defaults to TCP.
Tips:
- To allow QualiX in-browser connections to the VM from the sandbox, include port "22".
- To set more specific security groups, it is recommended to use the TestShell API's
SetAppsSecurityGroup
method instead. Unlike the Inbound Ports attribute, it enables you to define different port settings per subnet and allow inbound access to specific source CIDRs. For additional information, see SetAppSecurityGroups Code Example.
Disk Type Type of disk to use (HDD / SSD). Default is HDD. Image Publisher Define the VM image's Publisher, Offer and SKU.
Note: The Publisher, Offer and SKU must exist in the Azure region where the VM will be deployed.
For typical image properties, see the following Azure help pages: Linux VM images and Windows VM images.
Image Offer Image SKU Allow All Sandbox Traffic Determines if the App allows inbound traffic from all other Azure Apps in the sandbox. If set to False, the App's VM will be isolated. Access from specific Apps or subnets can be defined using the Inbound Ports attribute or API.
Note: By default, this attribute is True, and access is allowed to all ports from all Apps in the sandbox. By default, all ports are open for traffic within the sandbox.
-
-
- To add additional deployment paths to the App template, click the Add New Deployment Path link at the bottom of the wizard and fill in the required information.
-
In the left pane, click Configuration Management and configure the application to be installed on the VM. More...Tips:
- How to set up support for the desired configuration management tool, see Configuration Management Support in CloudShell.
- How to develop custom scripts and Ansible playbooks, including examples, see Developing Configuration Management Scripts for Apps.
Important:- To run configuration management on an Azure App, make sure the App's VM size is Basic_A2 or larger.
-
For configuration management operations, CloudShell uses an available Execution Server (for Ansible, it's a Linux Execution Server that has the Supports Ansible flag).
If the cloud provider resource has an Execution Server Selector configured, it will use that selector. If the selector is empty, CloudShell will use the selector defined in the appropriate Resource Manager Client >Configuration Services model (Ansible Configuration or Custom Script Configuration).
-
Execution Server selectors specified on the deployed App shell/resource are not used to execute configuration management operations.
Select Tool Select the application's installation and configuration tool.
- None: Do not use any Configuration Management option. Use this option if, for example, the image or template already contains the application to install.
- Script: Install the application from a custom script (PowerShell, bash or sh).
-
Ansible: (Intended for customers who are already using Ansible) Install and configure the application using an Ansible playbook.
Note: The playbook runs once during the Setup phase for all of the sandbox's Apps that use that playbook, after CloudShell has finished deploying their VMs. This is done both to improve performance and support cross-server logic where multiple applications need to be installed and configured in a certain way.
Note that the playbook runs once for all of the sandbox's Apps that use that playbook, after CloudShell has finished deploying their VMs.
Depending on the selection, additional options may become available.
Connection Method The method to use to connect to the VM.
Select:
- SSH if the VM has a Linux OS
-
Windows Remote Management if the VM has a Windows OS
Note: To run configuration management on a Windows VM, the VM must have WinRM enabled. For details, see Enable WinRM on Windows VMs to Support Ansible and Enable WinRM on Windows VMs to Support PowerShell Scripts.
Playbook / Script Location Details of the Ansible playbook or custom script.
- URL: URL to the raw version of the Ansible playbook or custom script on the online repository. URL must be accessible to the Execution Servers.
-
User/Password|Token: (For private repositories) Access credentials or token to the script/playbook's online repository.
Notes for Custom Script configurations: In SSH mode, only bash and sh scripts are allowed. In WinRM mode, only PowerShell scripts are allowed.
Notes for Ansible configurations:
The Ansible playbook must be a YML or YAML file. To specify multiple playbooks or a hierarchy of an Ansible project, specify a ZIP package. If a ZIP containing 2 or more playbooks is specified, CloudShell will use the playbook file titled site.yml or site.yaml. If the file is missing, the App's deployment will fail.
Inventory Groups (For Ansible) Specify the host groups for the application to be installed, separated by semicolons (;). The newly deployed VM will be associated to these groups, thus allowing plays that target these groups to run on the VM.
For example:
Servers/AppServers;Servers/DBServers
Parameters Parameters to be passed to the Ansible playbook or custom script. Specify the parameters and their default values.
In the blueprint or sandbox diagram, privileged users can also set the parameter to receive the value that is specified for a global input when reserving a sandbox containing the App. This is done by selecting the global input when editing the App in the blueprint or sandbox diagram. For example, a global input that specifies the build number of a product to be tested or which components of a product to install.
(For Ansible) To customize the port to be used to communicate with the VM, add the
Ansible_port
parameter. Default:SSH
/Port: 22
/WinRM: 5985
.Additional Arguments (For Ansible) Define arguments to be passed to the execution of the playbook (
Ansible-playbook
command). For example,-v
will set verbose mode on while-f
will set the maximum number of VMs to be handled in parallel. Multiple arguments can be given, separated by spaces. For additional information on possible arguments, see the official Ansible documentation.The arguments must be specified in Resource Manager Client > Configuration Services family > Ansible Configuration model > Ansible Additional Arguments attribute.
Note: The arguments are defined globally for all Apps using Ansible.
Important: To configure Ansible to connect to certified hosts only (Linux VMs with a valid 'known_hosts' key), include the following additional arguments:
--ssh-extra-args='-o StrictHostKeyChecking=yes'
-
In the left pane, click App Resource to optionally set the VM's operating system user credentials (for example, to connect to the VM via RDP or SSH). You can also change the deployed App's Shell. More...
To help sandbox end-users connect to the VM, it is recommended to include the User and Password in the blueprint's instructions. For additional information, see Add Instructions.
Shell The Shell on which the App's VMs are based. When an App is deployed in a sandbox, it changes into a "deployed App resource", which is based on the selected Shell. By default, the "Generic App Model" Shell is used.
Deployed Apps include a default set of commands such as Power On and Refresh IP, and the VM's User and Password attributes, as explained below.
Note: Changing the Shell might cause additional fields to become visible and you may need to enter further information.
User VM's user name
Notes:- Azure VM username and password restrictions apply. For details, see Frequently asked question about Windows Virtual Machines.
- For Azure Marketplace VMs, if the user is not set, CloudShell will set adminuser as the default user name.
- For AWS instances, To support QualiX in-browser connections to AWS instances, make sure to set the credentials of a user that already exists on the Amazon machine image.
Password VM user's password
Notes for Azure Marketplace VMs:- If the password is not set, only the user name will be required. For Linux VMs, CloudShell will create an SSH key-pair to enable a secure connection.
- If the password is set, it will be displayed as asterisks (******) in the blueprint or sandbox.
-
Click Done.
The new App template is displayed in the Apps page.
