Configure an Execution Server Selector for AWS EC2

This article explains how to associate an Execution Server to AWS EC2 App deployments and command executions. To learn how to associate an Execution Server to resources, Apps and blueprints, see Setting Up Execution Servers to Run Commands.

The management VPC contains two Execution Servers: the es-shells Execution Server has a configured IAM role, which enables it to communicate with AWS and create the necessary elements, such as instances, networking etc. (as well as run any configuration management operations defined on the App), and the es-commands Execution Server is used to run custom code on the instances and has an empty IAM role, which restricts it from altering configurations on AWS services. The reason we have two Execution Servers is to ensure that custom code is launched in a safe and isolated manner, preventing misuse of the AWS account. As these are Linux Execution Servers, they do not support Suite executions.

The es-shells Execution Server in CloudShell needs to be associated with the AWS EC2 cloud provider resource while the es-commands Execution Server needs to be associated with the deployed App's shell, allowing it to launch the shell's commands inside the sandbox VPC. This link is achieved by using an attributes that has the Execution Server Selector rule.

For information about managing, troubleshooting and upgrading Execution Servers on AWS, see Managing AWS EC2 Execution Servers.

Note: The below procedure assumes you're using the out-of-the-box Execution Server Selector attribute. However, in order to use this attribute, you will need to assign it the Execution Server Selector rule in Resource Manager Client's Attributes tab. For details, see Defining attribute rules.

To configure the Execution Server Selector attribute:

  1. In CloudShell Portal, configure the Execution Server:

    1. Open the Manage>Execution Servers>Servers page.
    2. Click the es-shells Execution Server.

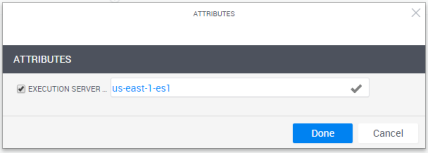

    3. Select the Execution Server Selector check box and enter a unique value, such as “us-east-1-es1”.

  2. Click Done.

  3. If you are using a deployed App shell that has a custom driver, repeat the above process to configure the es-commands Execution Server with a different Execution Server Selector value.

    To complete the link, in the App's App Resource page, specify the same value on the Execution Server Selector attribute.

    Important: If you are setting up AWS integration in High Availability mode, repeat this process for the backup Execution Servers (es-shells-b and es-commands-b).

  4. Next, Add an AWS EC2 Cloud Provider Resource.
